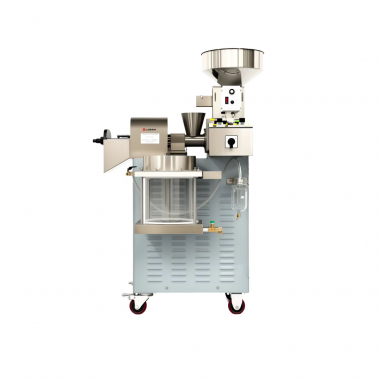

Labwin S01 Oil Press Machine for commercial application. The oil press machine can press 15KG~20KG raw materials per hour. This oil press machine can press over 30 kinds of material to meet different requirements from diverse customers.

S01 Oil Press Machine is equipped with a Vacuum Filtration Unit. It is ready to eat after the oil comes out.

The Whole Machine is 304 Stainless Steel

•solid and stable, corrosion resistance.

•high&low temperature resistance.

•durable in use.


Best Quality for Oil Press Spindle

•use high quality steel, long service life.

•advanced heat treatment technology makes hardness much more stronger.


Intelligent Control Panel

•control the sample injection speed through vibration range.

•intelligent temperature control system, 0ºC~399ºC can be adjustable.


Dual Mode for Cold&Hot Pressing

•cold pressing: before pressing, the raw material is under low temperature status or without heating.

•hot pressing: before pressing, the raw material is under high temperature treatment.


Equipped with A Vacuum Filtration Unit

•pressing and vacuum filtration at the same time.

•higher purity oil comes out, ready to eat without waiting.

•use transparent material, can be observed all the time.


Pressing Regulator

•can control the thickness of the dreg, the raw material can be pressed as 0.25mm~0.5mm dreg.

•pressing the raw material as much as possible, increasing the oil yield.


Normal and Reverse Function Switch

•the switch has normal turning, stop and reverse turning, it is easy to return the material and deslag.


Others

•pure copper industrial AC motor, the motor is accurate, low noise and powerful.

•with trundles, easy to move.

•double fan cooling, continuously pressing.
