Product Description

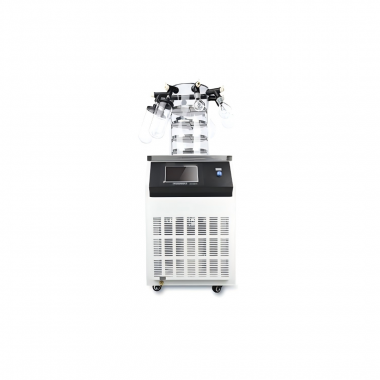

Labwin Laboratory Scale Freeze Dryer/Lyophilizer is a freeze drying equipment which specially designed for laboratory research. It is suitable for efficient freeze-drying/lyophilization of heat-sensitive materials. This device can be directly sublime the water in the material at low temperature through freeze-drying/lyophilization technology, thereby obtaining dry powder or crystal products. It is widely used in drying, preservation and analysis of samples in the fields of biological products, pharmaceutical medicine, chemical and food, etc.

1. Overall System Performance: Compact Design, Great Performance.

•The device is designed by compact structure, it is easy to move and saves much space.

•Imported advanced compressor, it has stable running.


2. Cooling System: Fast Cooling, Two Options.

•We adopt imported brand compressor, it could make the cold trap lower temperature.

•-80ºC is available for you to choose.


3. Control System: Intelligent Control, Color Display.

•7 inches color touchscreen, easy to operate.

•All key parameters(Cold Trap Temperature, Sample Temperature, Vacuum Degree and Panel Temperature, etc.) are all shown.

•Industrial level operation system, fast response and big data storage.

•Freeze-Drying data is saved automatically, users could view it in real time.

•The device can save multiple freeze-drying curve and users can use USB flash disk to copy and print.

•When the chamber temperature is too high, the machine will be alarmed automatically.


4. Drying Chamber: Transparent and Highly Sealed, Corrosion Resistant.

•Made of colorless and transparent material, users can observe the whole freeze-drying process.

•The drying chamber material is corrosion resistant, breakage-proof, good seal.

•Equipped with inflation valve, which can be filled with dry nitrogen or inert gas.


5. Vacuum System: Controllable, Intelligent Protection.

•The cold trap temperature can be preset, when the temperature lower than the setting value, the vacuum pump will be opened. It is effective to protect the vacuum pump from premature activation.
