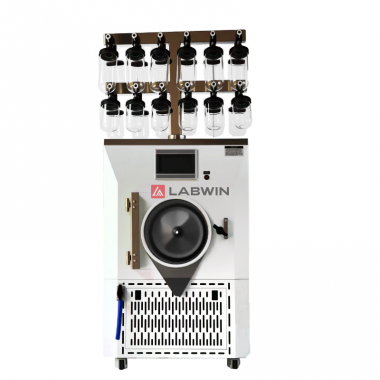

The LYOT series is a medium-size lyophilizer which is designed for laboratory to realize the pilot scale processing. The T-frame lyophilizer is a precision instrument specially designed for laboratories. It is equipped with 24 rubber sealing valves as standard and supports the simultaneous hanging of 24 wide-mouth bottles or eggplant shaped flask. The independent material pipeline design is adopted to ensure that samples will not be cross-contaminated during the processing, providing a pure operating environment.
This equipment is equipped with advanced imported compressors, capable of achieving a highly automated freeze-drying process. Under standard configuration, it can reach a temperature of -56ºC without loading. With the optional -80ºC compressor, it can provide a deeper low-temperature environment.
Product FeaturesOverall Performance: compact structure, excellent function.Vacuum System: vacuum degree can be controlled, intelligent protection.Cooling System: top quality compressor, best cooling performance.Drying Chamber: transparent for observing, highly sealed, corrosion resistant.Control System: intelligent control, color display.Technical Specification| Model | LYOT-25K |
| Article Number | E01252109F |
| Cold Trap Temperature Without Loading | -56ºC (-80ºC Optional) |
| Ice Condenser Capacity | 14L/Batch |
| Condenser Surface | 0.61m2 |
| Condensation Chamber Volume | 25L |
| Compressor Horse Power | 1.1HP |
| Compressor Amount | 1 (-80ºC Dual) |
| Vacuum Pump | 4L/S |
| Dual Manifold | 24 Ports (24 Single Channels) |
| System Refrigerant | R404 R23 |
| Defrosting Method | Electric Defrost |
| Average Defrost Time | <40min |
| Power Supply | 220V 50Hz |
